STUDIO REPAIR - Akai Z4 - EL Converter

Picture Content Information
▪ Device:		Akai Z4
▪ Topic:		EL Converter

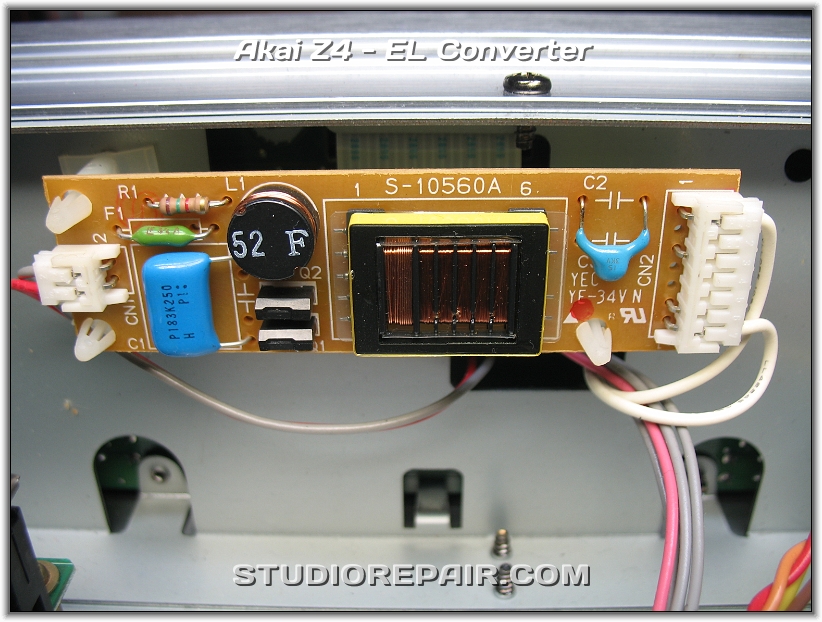

▪ Abstract:		High voltage supply for the LCD lighting
▪ Owner:		Equipment courtesy of Ensemble Modern
▪ Creator:		Image by Nikolaus Riehm
▪ Website:		studiorepair.com
▪ Editor:		Nikolaus Riehm
