STUDIO REPAIR - Clavia Nord Stage 2 - Keyboard Assembly

Picture Content Information
▪ Device:		Clavia Nord Stage 2
▪ Topic:		Keyboard Assembly

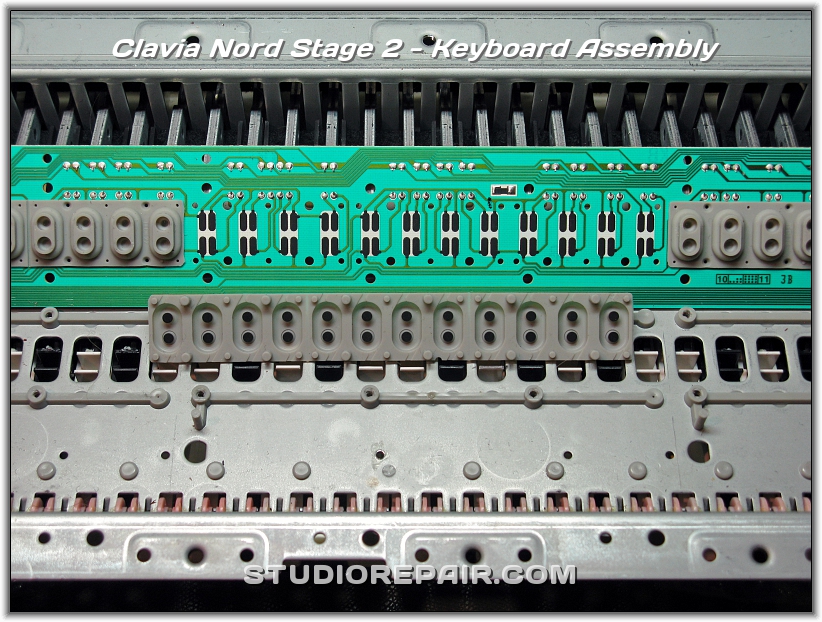

▪ Abstract:		Fatar Keyboard Assembly - Rubber Contacts
▪ Creator:		Image by Nikolaus Riehm
▪ Website:		studiorepair.com
▪ Editor:		Nikolaus Riehm
