STUDIO REPAIR - Crumar DS 2 - Circuit Board

Picture Content Information
▪ Device:		Crumar DS 2
▪ Topic:		Circuit Board

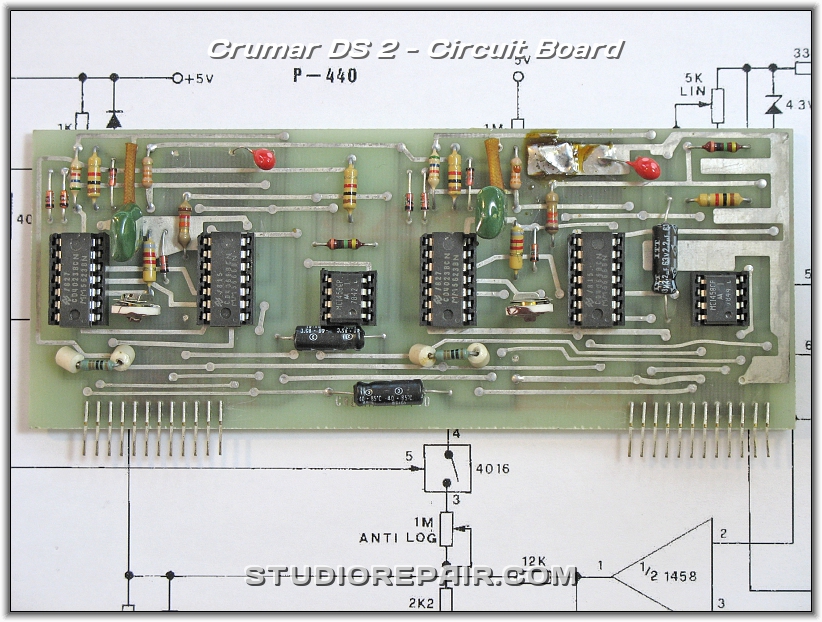

▪ Abstract:		PCB P440 - ADSR Circuitry - Component Side
▪ Owner:		Equipment courtesy of Wallysworld
▪ Creator:		Image by Nikolaus Riehm
▪ Website:		studiorepair.com
▪ Editor:		Nikolaus Riehm
