E-mu Drumulator  •  Imprint

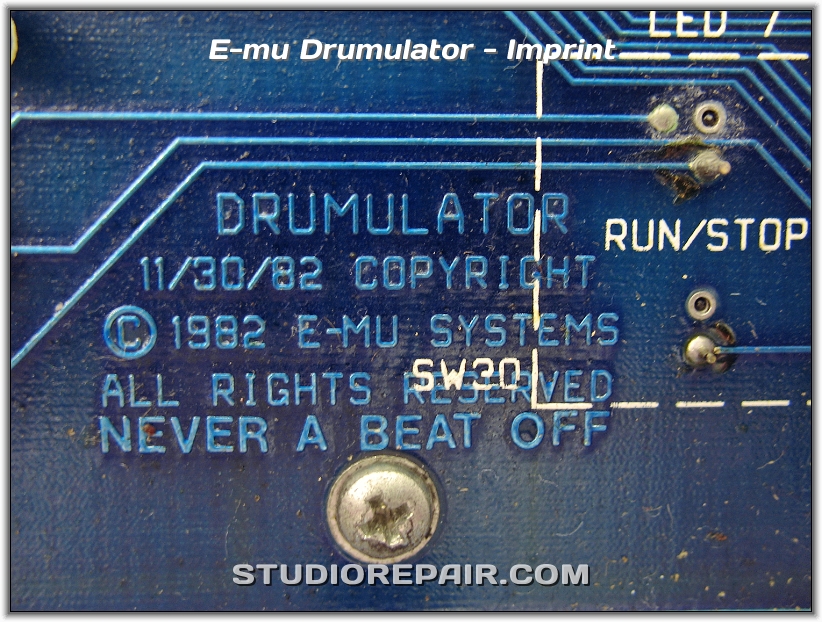

Imprint on the circuit board. Never a beat off…
E-mu Drumulator - MIDI Expansion * Steinberg Research AK DRUM / Amptown Drumu v2.1 - MIDI expansion board

E-mu Drumulator - Circuit Board * …

E-mu Drumulator - Sound ROMs * …

E-mu Drumulator - Converter * The main D/A converter (AM6072)

E-mu Drumulator - Level DAC * …

E-mu Drumulator - Tom Filter * SSM2044 filter for toms

E-mu Drumulator - Channel Demux * A DMX-88 from Precision Monolithics Inc. serves as the channel demultiplexer
Next slide

E-mu Drumulator - Imprint - Image by Nikolaus Riehm
E-mu Drumulator - Display * …

E-mu Drumulator - EPROM Content * The first bytes of the operating system EPROM

E-mu Drumulator - Power Supply * Mounting of the +5V voltage regulator

E-mu Drumulator - Bridge Rectifier * Maintenance & Repair - Replacement of the four rectifier diodes by a bridge rectifier

E-mu Drumulator - POOF! * PooF - Routine to clear a memory mismatch
