E-MU Emax  •  CPU Board

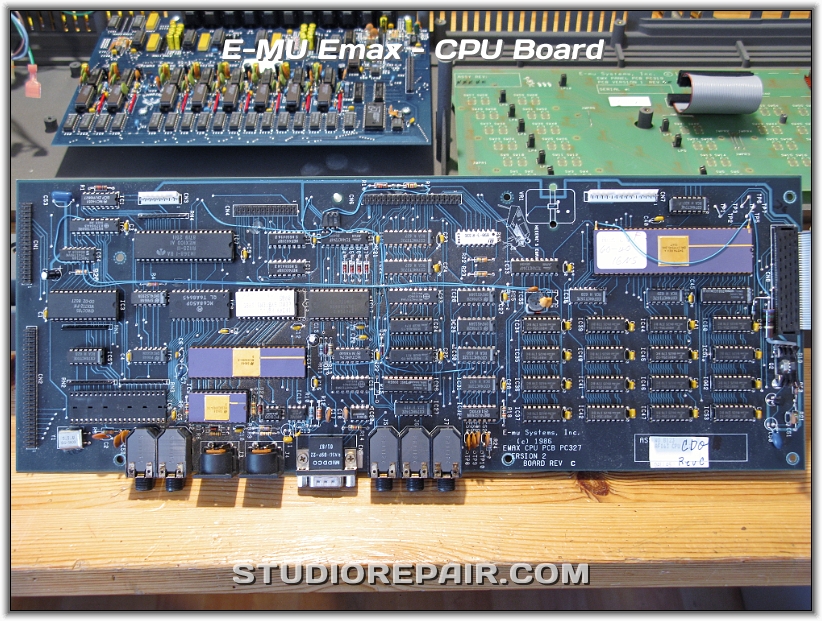

CPU PCB PC237 Version 2 Board Rev C
E-MU Emax - Opened * …

E-MU Emax - PSU * …

E-MU Emax - Opened * Analog Board

E-MU Emax - Opened * CPU Board

E-MU Emax - Analog Board * Analog PCB V3

Next slide

E-MU Emax - CPU Board - Image by Nikolaus Riehm
E-MU Emax - Panel Board * …

E-MU Emax - Panel Board * …

E-MU Emax - E-CHIP * …

E-MU Emax - Host Processor * National Semiconductor NS32008 CPU (a 32-Bit NS16032 /w 8-Bit External Data Bus) w/ NS32C201 TCU (Timing Control Unit)

E-MU Emax - Host Processor * National Semiconductor NS32C201 TCU (Timing Control Unit)

E-MU Emax - Power Supply * …

E-MU Emax - PSU * PSU PCB Soldering Side
