E-MU Proteus Keys  •  Proteus 2000 ROM
AP12068-17 / Proteus 2000 Expansion Sound ROM
E-MU Proteus Keys - Top View * …

E-MU Proteus Keys - Logotype * Rear Panel Logo

E-MU Proteus Keys - Opened * …

E-MU Proteus Keys - Opened * Mainboard PC11890 REV 3

E-MU Proteus Keys - Sound ROMs * …

E-MU Proteus Keys - Sound ROMs * …

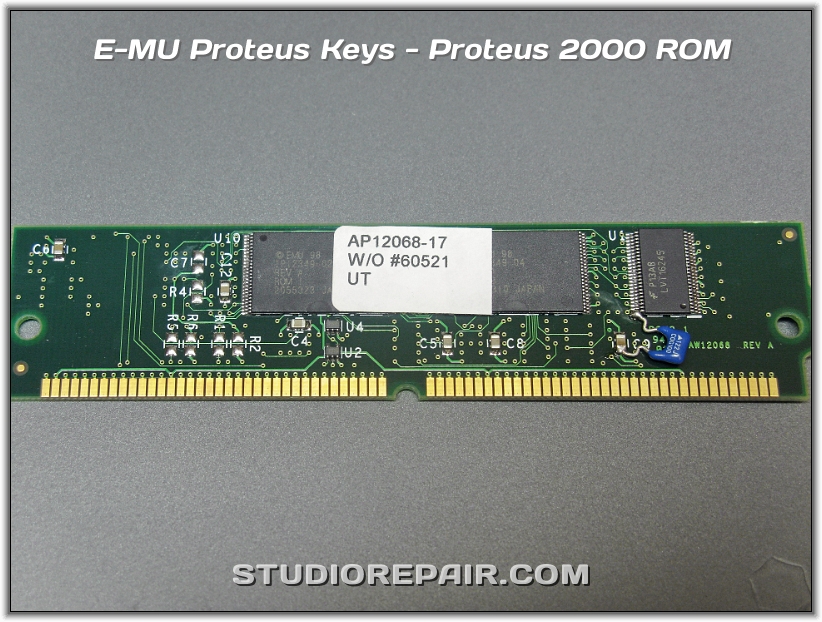

E-MU Proteus Keys - Proteus 2000 ROM * Proteus 2000 Expansion Sound ROM / PROM 1
Next slide

E-MU Proteus Keys - Proteus 2000 ROM - Image by Nikolaus Riehm
E-MU Proteus Keys - Protozoa ROM * E-MU Protozoa Expansion ROM

E-MU Proteus Keys - Protozoa ROM * E-MU Protozoa Expansion ROM

E-MU Proteus Keys - Error Message * Maintenance & Repair: Err: A[] bit stuck low - Continue?

E-MU Proteus Keys - Power Supply * Young Year PSU Model YPS-92A (+5V/2.0A, +12V/0.3A, -12V/0.3A)

E-MU Proteus Keys - Sound Engine * E-MU G2.0 IC12353 REV.A Sound Engine

E-MU Proteus Keys - Microcontroller * Motorola / Freescale MCF5307 ColdFire MPU

E-MU Proteus Keys - Effects DSP * An EMU8000 (E-MU IC405A) used as FX processor
