Emagic mt4  •  Rear View
…
Emagic mt4 - Front View * …
Next slide

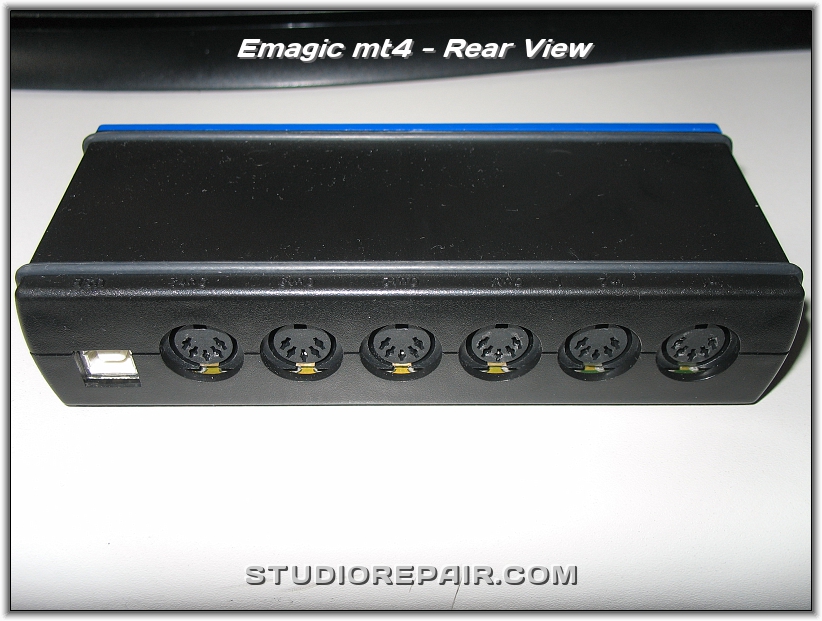

Emagic mt4 - Rear View - Image by Nikolaus Riehm
Emagic mt4 - Opened * …

Emagic mt4 - Microcontroller * Cypress CY7C64013: 8-Bit USB Optimized Microcontroller

Emagic mt4 - Receiver/Transmitter * Exar ST16C454 quad universal asynchronous receiver/transmitter (UART), up to 1.5Mbps.
