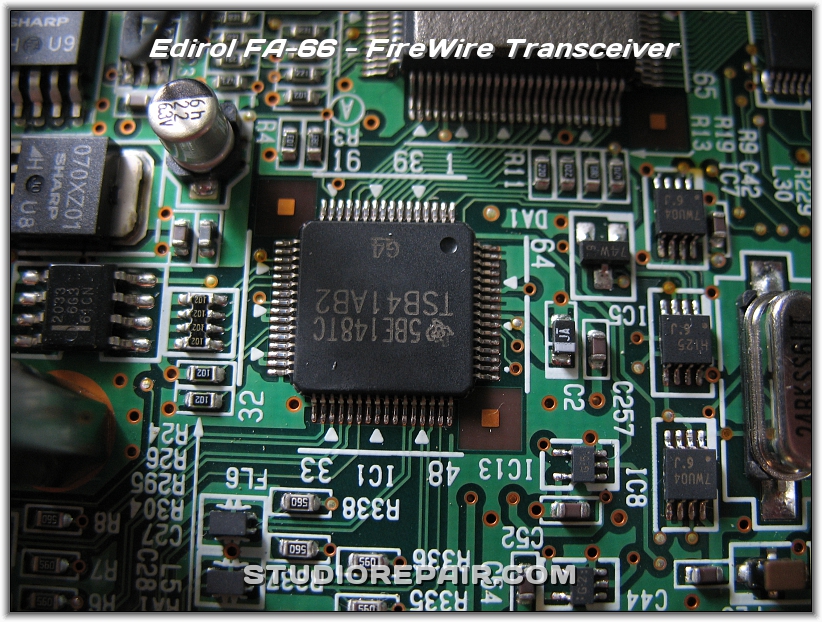

Edirol FA-66  •  FireWire Transceiver
Texas Instruments TSB41AB2 IEEE1394a-2000 FireWire PHY
Edirol FA-66 - Opened * …

Edirol FA-66 - D/A Converter * AKM AK4385VT 192kHz/24-Bit 2ch D/A Converter

Edirol FA-66 - A/D Converter * Cirrus Logic CS5340 192kHz/24-Bit 2ch A/D Converter
You have reached the last slide

Edirol FA-66 - FireWire Transceiver - Image by Nikolaus Riehm
