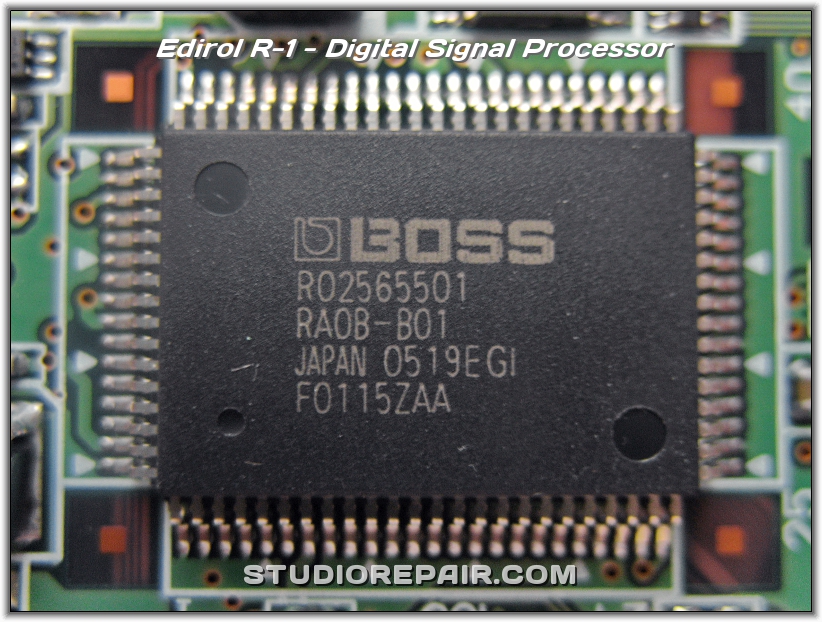

Edirol R-1  •  Digital Signal Processor
Boss R02565501 / TC220CCA0AF-B01(MR3)
Edirol R-1 - Opened * …

Edirol R-1 - Opened * …

Edirol R-1 - Converter * AKM AK4353VF 24Bit/96kHz D/A Converter & AKM AK5353VT 24Bit/96kHz A/D Converter

Edirol R-1 - Converter * AKM AK4353VF 24Bit/96kHz D/A Converter & AKM AK5353VT 24Bit/96kHz A/D Converter

Edirol R-1 - Microcontroller * Hitachi/Renesas HD64F3687FP-V 16bit H8/300H Microcontroller
