Eventide H3000-D/SX  •  Converters
…
Eventide H3000-D/SX - Rear Panel * MIDI In/Thru/Out

Eventide H3000-D/SX - Rear Panel * Mains inlet and the voltage regulator's heat sink

Eventide H3000-D/SX - Circuit Boards * …

Eventide H3000-D/SX - Integrated Circuits * …

Eventide H3000-D/SX - Signal Processors * Three Texas Instruments TMS320C10 DSPs. Each one correspond to a so called PEL (Processing ELement) of the H3000 design.

Eventide H3000-D/SX - Circuit Boards * …

Eventide H3000-D/SX - Circuit Boards * …
Next slide

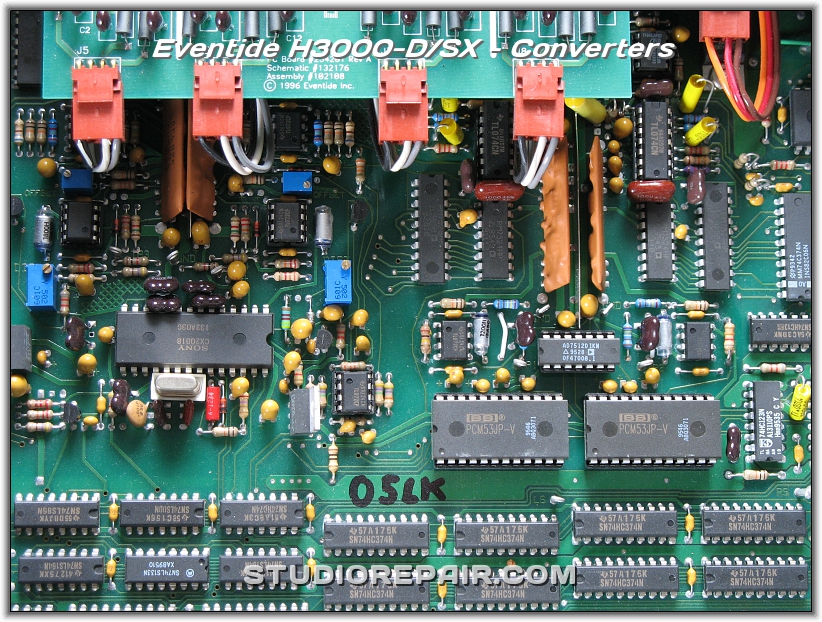

Eventide H3000-D/SX - Converters - Image by Nikolaus Riehm
Eventide H3000-D/SX - Analog I/O Circuitry * …

Eventide H3000-D/SX - A/D Converter * Sony CX20018 Dual 16-bit 44kHz Multiplexed A/D Converter.

Eventide H3000-D/SX - Analog Stages * …

Eventide H3000-D/SX - Integrated Circuits * …

Eventide H3000-D/SX - Input Circuitry * An AD7524 8-bit D/A converter in the input circuitry.

Eventide H3000-D/SX - Digital Circuitry * CPU, RAM and ROM

Eventide H3000-D/SX - Optical Encoder * …
