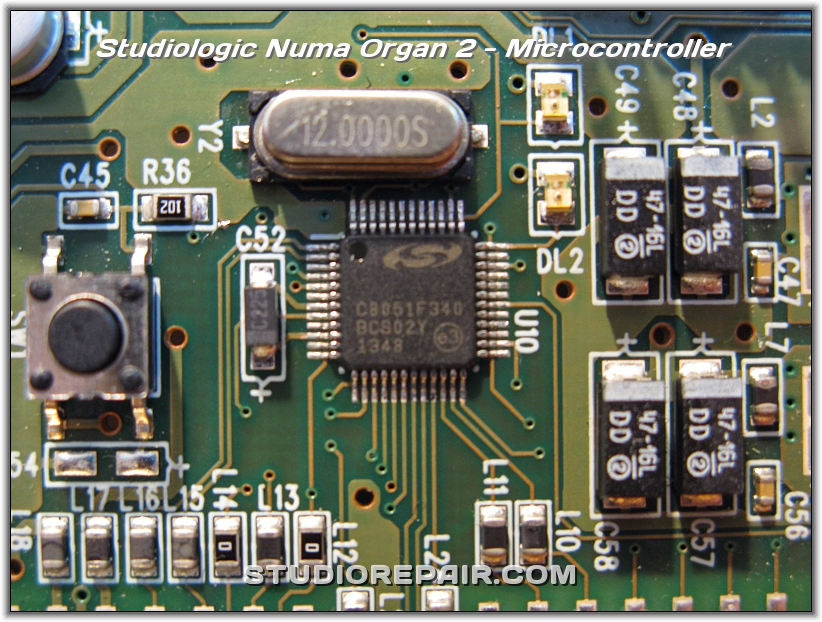

Studiologic Numa Organ 2  •  Microcontroller
Silicon Labs C8051F340 8-Bit MCU (50MHz 8051-Core, 64kB Flash, On-board USB)
Studiologic Numa Organ 2 - Opened * …

Studiologic Numa Organ 2 - Power Supply * …

Studiologic Numa Organ 2 - Pitch-/Mod-Wheels * …

Studiologic Numa Organ 2 - Logotype * Fatar Waterfall Touch - Made in Italy

Studiologic Numa Organ 2 - Mainboard * Main PCB - Component Side

Studiologic Numa Organ 2 - Mainboard * Main PCB - Soldering Side

Studiologic Numa Organ 2 - Signal Processor * Texas Instruments TMS320C6727 DSP (C67x Family of 32-/64-Bit Floating-Point Signal Processors)
Next slide

Studiologic Numa Organ 2 - Microcontroller - Image by Nikolaus Riehm
Studiologic Numa Organ 2 - D/A Converter * Burr Brown / Texas Instruments PCM1791A 113dB SNR Stereo DAC
