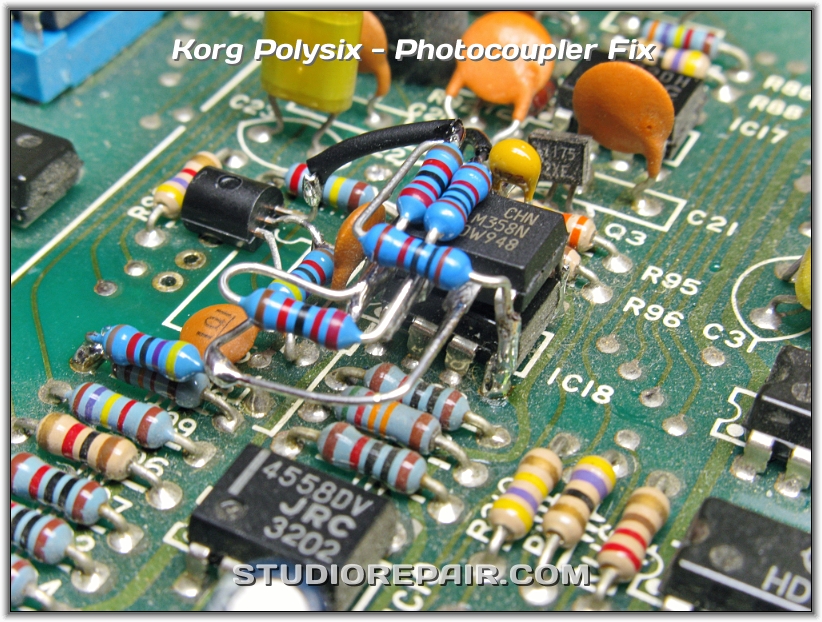

Korg Polysix  •  Photocoupler Fix
Replacing Faulty HTV P1501 Photocoupler w/ FET-based Circuitry (Schematic by Stefan Schmitt, 2015)
Korg Polysix - Voices Circuitry * Discrete Built VCOs

Korg Polysix - Voices Circuitry * SSM2044 4-Pole VCF & SSM2056 ADSR Integrated Circuits

Korg Polysix - CPU Board * PCB KLM-367A w/ Piggyback EES Midicomp MIDI-Extension

Korg Polysix - Effects Board * KLM-368A

Korg Polysix - Power Supply * KLM-376

Korg Polysix - Photocoupler * HTV P1501 Photocoupler

Korg Polysix - Photocoupler Fix * Replacing Faulty HTV P1501 Photocoupler w/ FET-based Circuitry (Schematic by Stefan Schmitt, 2015)

Next slide

Korg Polysix - Photocoupler Fix - Image by Nikolaus Riehm
