Lexicon PCM 81  •  Display

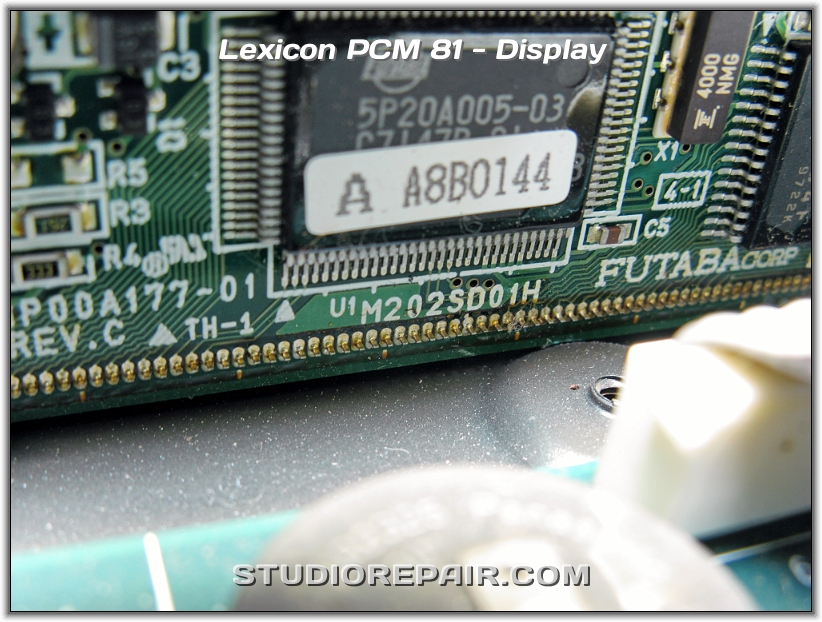

Futaba M202SD01H Vacuum Fluorescent Display Module
Lexicon PCM 81 - A/D Converter * AKM AK5391 - 24-Bit Stereo A/D Converter

Lexicon PCM 81 - D/A Converter * Crystal CS4390 - 24-Bit Stereo D/A Converter

Next slide

Lexicon PCM 81 - Display - Image by Nikolaus Riehm - Equipment courtesy of Ulf Langheinrich
Lexicon PCM 81 - Backup Battery * BR2325 Lithium Battery

Lexicon PCM 81 - Circuit Board * P/N 710-12620 Rev. 3

Lexicon PCM 81 - Power Supply * …
