Motu 24 I/O • Matrix LEDs

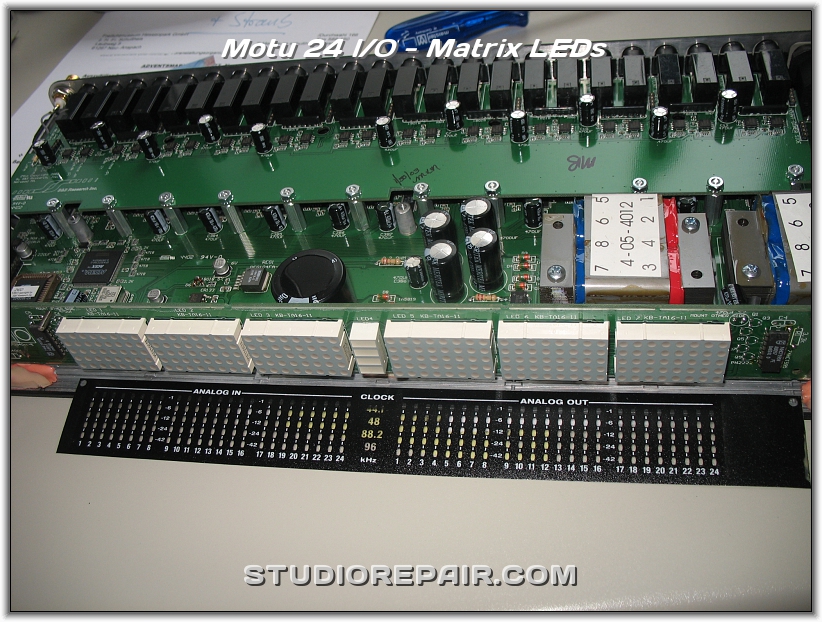

The removed front panel reveals matrix LEDs used for level metering

Motu 24 I/O - Deconstructed * Front panel and rear jack board removed

Motu 24 I/O - Digital Circuitry * …

Motu 24 I/O - Microcontroller * The 89C58 is a derivative of the 80C51 8-bit microcontroller family with 32kB of internal flash memory

Motu 24 I/O - AK4528 Codec * The AKM AK4528 is a 24-bit 96kHz audio CODEC (2 channels I/O)

Next slide

Motu 24 I/O - Matrix LEDs - Image by - Equipment courtesy of

Motu 24 I/O - LED Matrix * Input Channels

Motu 24 I/O - LED Matrix * Output channels

Motu 24 I/O - LED Matrix Driver * …

Motu 24 I/O - LED Matrix * …

Motu 24 I/O - Replaced Transistor * Substituting a PN2222A with a 2N2222A to fix a matrix driver issue
