Motu PCI-424  •  TMS320 DSP

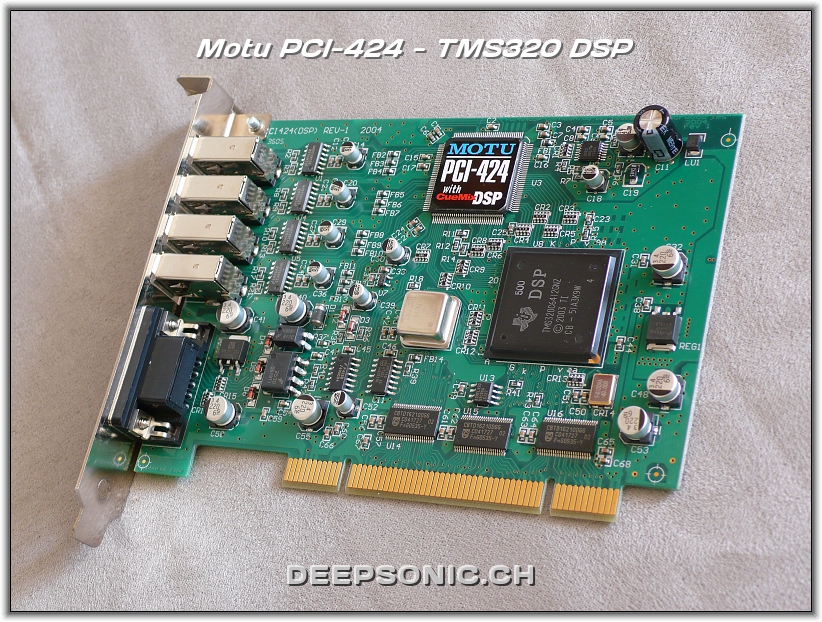

Texas Instruments' TMS320C6412 is a high-performance fixed-point digital media processor (DSP)
Motu PCI-424 - Circuit Board * Component side of the first revision of the PCI-424

Motu PCI-424 - Circuit Board * Soldering side

Next slide

Motu PCI-424 - TMS320 DSP - Image by dr.squ @ deep!sonic - Equipment courtesy of deep!sonic
Motu PCI-424 - Connectors * Up to four interfaces can connect to the PCI-424
