Roland Jupiter-4  •  Module Control Board

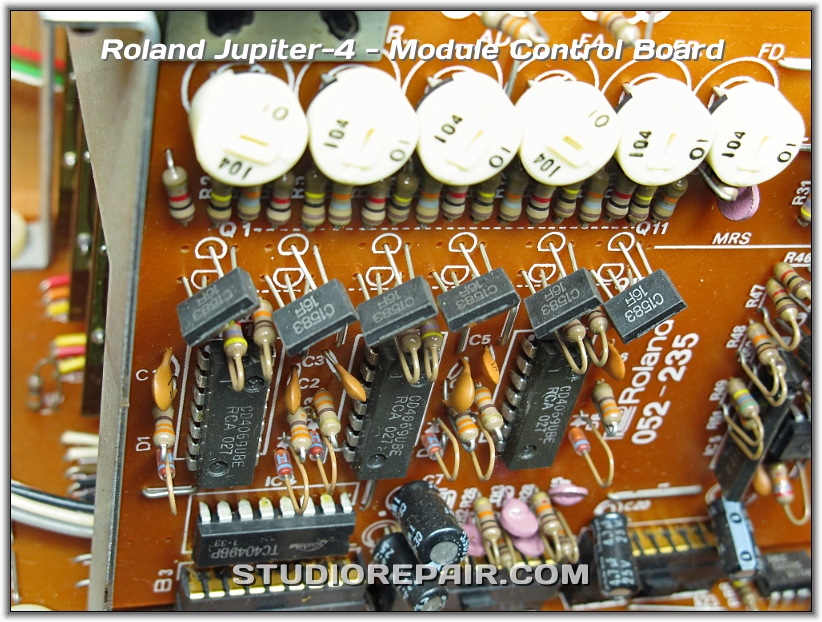

Module Controller PCB 052-235 - 6× 2SC1583 Dual NPN Transistor (SIP-5)
