Roland Alpha Juno-2  •  Power Supply

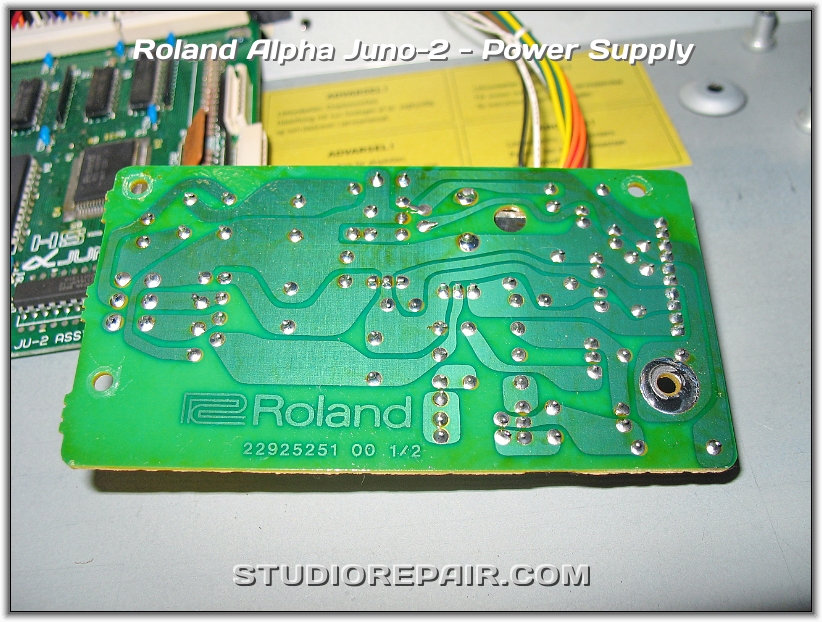

PSU Board Soldering Side
Roland Alpha Juno-2 - Encoder * The α-Dial Encoder

Roland Alpha Juno-2 - Encoder * The α-Dial Encoder Dismounted

Roland Alpha Juno-2 - Encoder * The α-Dial Encoder Contact Board

Roland Alpha Juno-2 - Slider * Dismounted Volume Slider

Roland Alpha Juno-2 - Test Mode * LCD Indicating the Entered Test Mode

Roland Alpha Juno-2 - Power Supply * Mains Inlet and Transformer

Roland Alpha Juno-2 - Power Supply * Power Board (Assembly 76160111 for 100/117 Volts and 76160114 for 220/240 Volts)

Next slide

Roland Alpha Juno-2 - Power Supply - Image by Nikolaus Riehm
Roland Alpha Juno-2 - Memory Cartridge * The cartridge contains one battery backed-up Toshiba TC5517APL 16kB CMOS static RAM (2kx8bit)
