Roland JX-3P  •  Pitch Bender

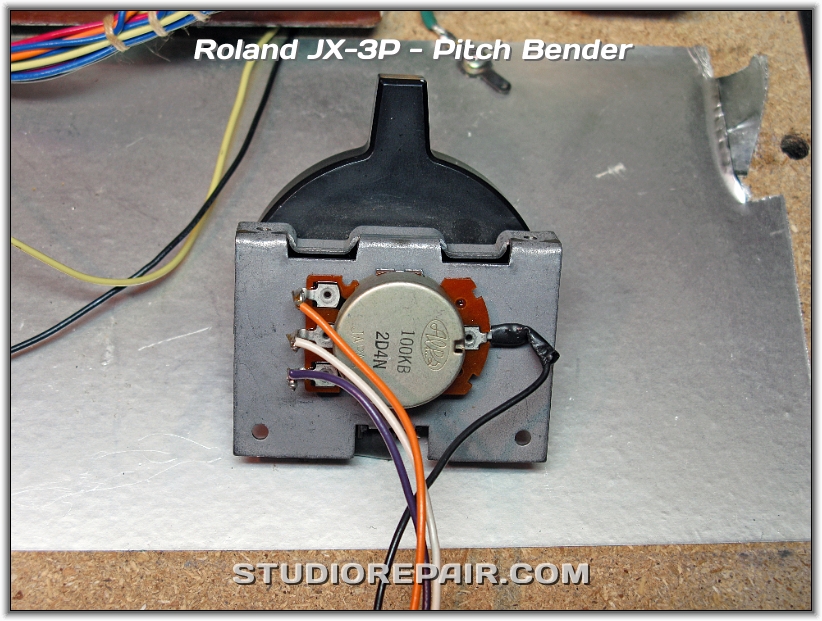

PB-7 Bender Assembly
Roland JX-3P - Opened * …

Roland JX-3P - Panel Board * Panel Board 149H214 / PCB 052H441C - Soldering Side

Roland JX-3P - Main Board * Main Board 149H213 / PCB 052H440C (Later Series: IC4-IC18 SIL Cases)

Roland JX-3P - Opened * …

Roland JX-3P - Opened * …

Roland JX-3P - Power Supply * Power Supply Board 146H108 (220/240V) / PCB 052H443B

Roland JX-3P - Cable Harness * Main Board Removed
