Roland JX-3P  •  Panel Board

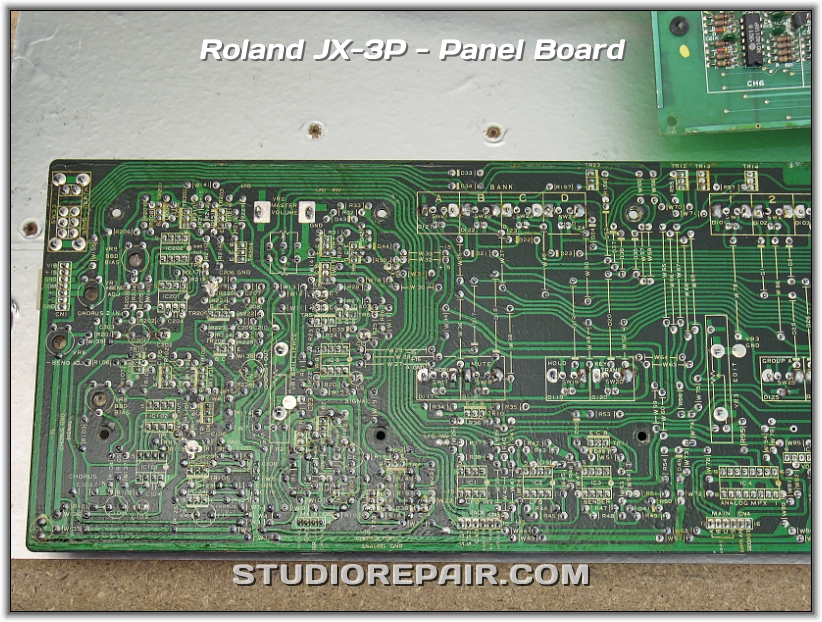

Panel Board 149H214 / PCB 052H441C - Soldering Side
Roland JX-3P - Main Board * Main Board 149H213 / PCB 052H440C (Later Series: IC4-IC18 SIL Cases)

Roland JX-3P - Main Board * Main Board 149H213 / PCB 052H440C (Later Series: IC4-IC18 SIL Cases)

Roland JX-3P - Main Board * Main Board 149H213 / PCB 052H440B (Early Series: IC4-IC18 DIL Cases)

Roland JX-3P - Main Board * Main Board 149H213 / PCB 052H440C - Roland IR3109 VCF (Quad OTA)

Roland JX-3P - Main Board * Main Board 149H213 / PCB 052H440C - DCO-1 & DCO-2 Master Oscillator

Roland JX-3P - DIN Jack Board * DIN Board 149H216 / PCB 052H451A - Early Series w/o MIDI Thru Jack

Roland JX-3P - DIN Jack Board * DIN Board 149H216 / PCB 052H451A - Early Series w/o MIDI Thru Jack - Soldering Side
