Roland Juno-60  •  CPU / Voice Board
Board OPH161 / PCB 052H370C - Soldering Side
Roland Juno-60 - Opened * Opened case - right side view

Roland Juno-60 - Circuit Boards * In this view you can see all the PCBs: both panel boards, the main board, the power supply, the bending unit and the chorus PCB.

Roland Juno-60 - Main Board * …

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C

Roland Juno-60 - Groove MIDI * Fitted Groove Electronics Juno-6/60 MIDI Conversion Kit (Groove III / JUNO660)

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C

Next slide

Roland Juno-60 - CPU / Voice Board - Image by Nikolaus Riehm

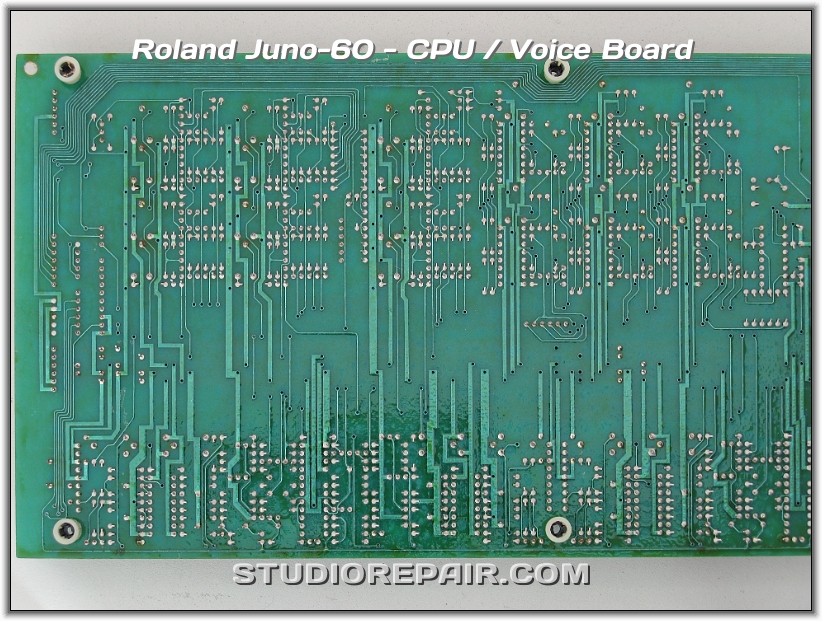

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C - Soldering Side

Roland Juno-60 - Master Oscillator * Varicap-based high frequency oscillator circuitry (variable capacitance diode used as voltage-controlled capacitor for the VCO)

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C

Roland Juno-60 - VCA Section * Board OPH161 / PCB 052H370C - Voltage Controlled Amplifiers - One Roland BA662 OTA per Voice

Roland Juno-60 - Envelope Generators * CPU Board OPH161 / PCB 052H370C - Envelope Generator Section w/ one Roland IR3R01 per Voice

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C - Waveform & VCF Section (Roland IR3109 Quadruple OTA for VCF Applications)

Roland Juno-60 - Right Panel PCB * Dismounted right panel PCB
