STUDIO REPAIR - Roland SH-09 - Circuit Board

Picture Content Information
▪ Device:		Roland SH-09
▪ Topic:		Circuit Board

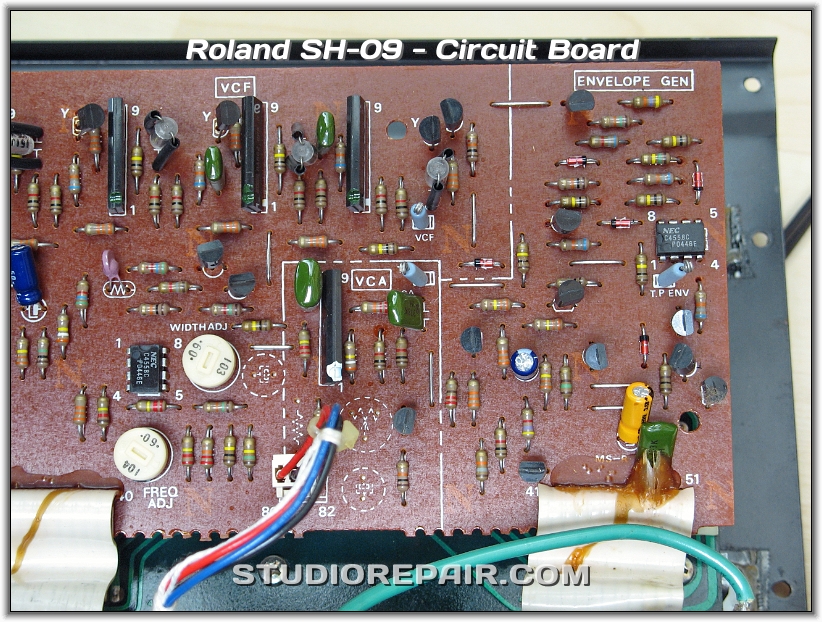

▪ Abstract:		Envelope Generator & VCA Circuitry
▪ Owner:		Equipment Courtesy of Jazzrock Band Candycream
▪ Creator:		Image by Nikolaus Riehm
▪ Website:		studiorepair.com
▪ Editor:		Nikolaus Riehm
