Sequential Circuits Prophet-5  •  Kenton MIDI Kit
SCI Model 1000 Rev 3.0
Sequential Circuits Prophet-5 - SSM2030 VCOs * SCI Model 1000 Rev 2.0: SSM2030 VCOs with Tempco Resistors (Tel Labs Q81) Soldered Piggyback

Sequential Circuits Prophet-5 - D/A Converter * SCI Model 1000 Rev 2.0: Discrete Build 7-Bit D/A-Converter (R-2R Ladder) with a LM723 as Voltage Reference Generator

Sequential Circuits Prophet-5 - Board Sandwich * SCI Model 1000 Rev 2.0

Sequential Circuits Prophet-5 - SCI MIDI Kit * Original Sequential Circuits Prophet-5 MIDI Kit (SCI Model 841)

Sequential Circuits Prophet-5 - SCI MIDI Kit * Original Sequential Circuits Prophet-5 MIDI Kit (SCI Model 841): Component Side

Sequential Circuits Prophet-5 - SCI MIDI Kit * Original Sequential Circuits Prophet-5 MIDI Kit (SCI Model 841): Soldering Side

Sequential Circuits Prophet-5 - SCI MIDI Kit * Original Sequential Circuits Prophet-5 MIDI Kit (SCI Model 841): Board Marking

Next slide

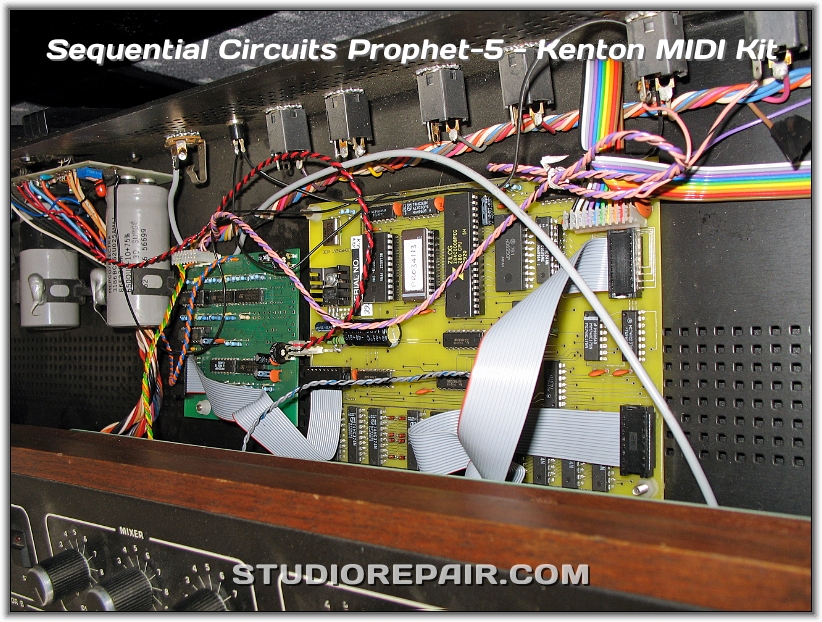

Sequential Circuits Prophet-5 - Kenton MIDI Kit - Image by Nikolaus Riehm - Equipment courtesy of Kai Tracid
Sequential Circuits Prophet-5 - Lintronics MIDI Kit * …

Sequential Circuits Prophet-5 - Rear Jacks * SCI Model 1000 Rev 3.3: CV/Gate In, MIDI I/O, Audio Out

Sequential Circuits Prophet-5 - Power Supply * SCI Model 1000 Rev 3.3: Mains Transformer Section

Sequential Circuits Prophet-5 - Power Supply * SCI Model 1000 Rev 2.0

Sequential Circuits Prophet-5 - Power Supply * A Rev 3.1 and Upwards PSU (New EPROM Type Needs no +12V and -5V Supplies)

Sequential Circuits Prophet-5 - RAM Replacement * SCI Model 1000 Rev 3.0: Replacing Faulty 6508-Type Memory ICs With One Single 2016-Type SRAM Chip

Sequential Circuits Prophet-5 - RAM Replacement * SCI Model 1000 Rev 3.0: Replacing Faulty 6508-Type Memory ICs With One Single 2016-Type SRAM Chip
