Studio Electronics Midimoog  •  Octave Buffer

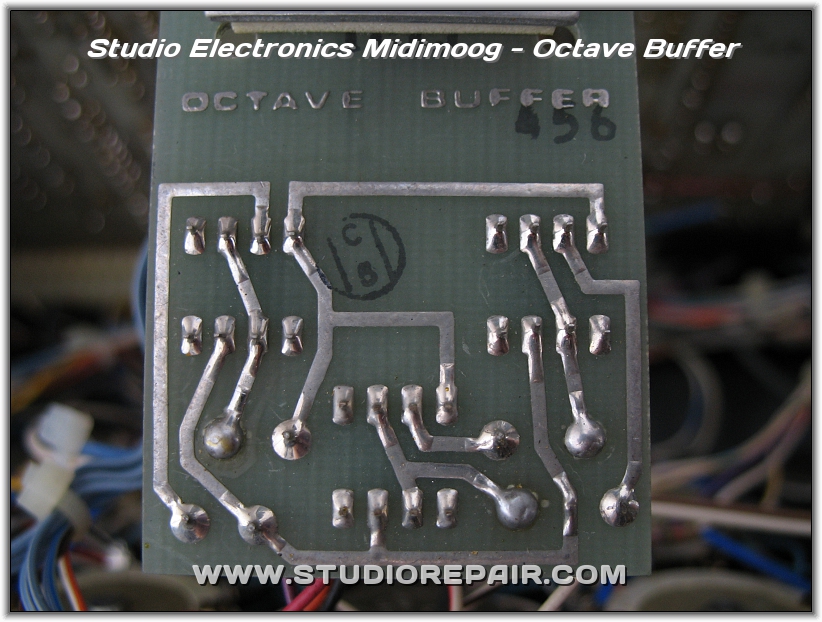

This octave buffer PCB was an original Moog modification to improve the octave switches' stability (the PCB just contains three operational amplifier ICs).
