Yamaha TX802 • Memory Cartridge

RAM4GF Cartridge

Yamaha TX802 - Backup Battery * CR2032 w/ 2 Solder Pins @ 15 mm Spacing

Yamaha TX802 - Backup Battery * Replacement Battery - A CR2450 with Slightly Bended Solder Pins Will Fit

Yamaha TX802 - Power Supply * PS Circuit Board XB185B - Component Side

Yamaha TX802 - Power Supply * PS Circuit Board XB185B - Soldering Side

Yamaha TX802 - Logotype * PCB Part No. XB209

Yamaha TX802 - Memory Cartridge * RAM4GF Cartridge

Yamaha TX802 - Memory Cartridge * RAM4GF Cartridge

Next slide

Yamaha TX802 - Memory Cartridge - Image by - Equipment courtesy of

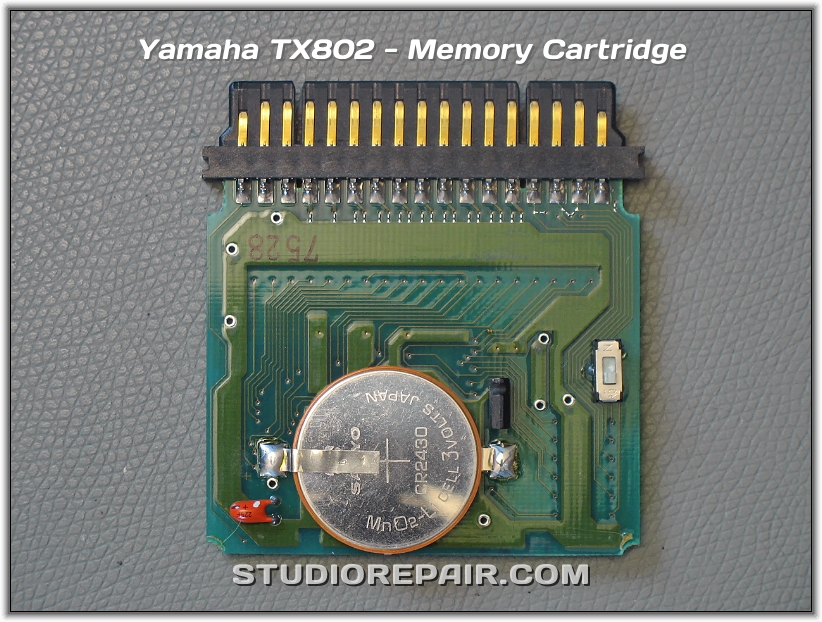

Yamaha TX802 - Memory Cartridge * RAM4GF Backup Battery - Originally a CR2430 with solder tabs but a CR2450 with bended solder pins will fit exactly inside the case.

Yamaha TX802 - Memory Cartridge * RAM4GF Backup Battery - Originally a CR2430 with solder tabs but a CR2450 with bended solder pins will fit exactly inside the case.
