dbx 1066  •  Circuitry

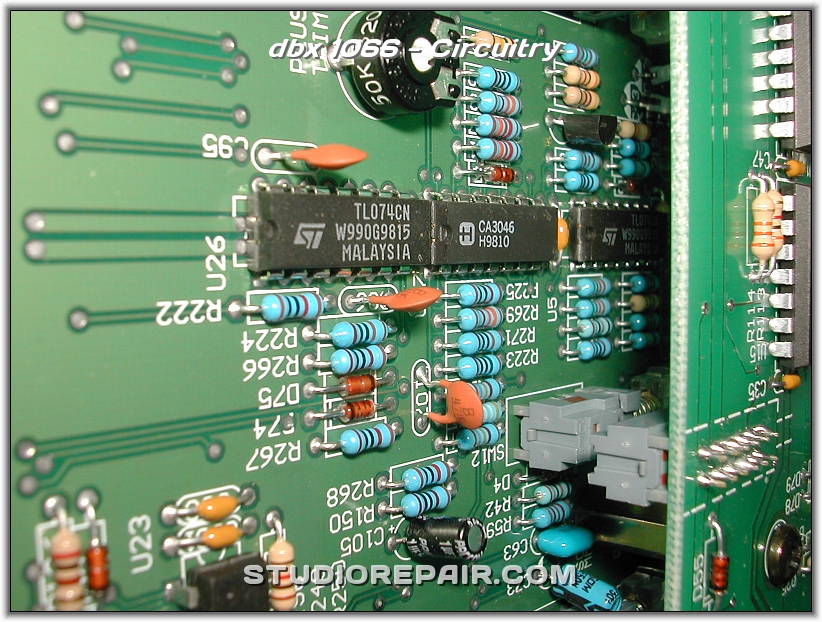

The compression circuitry consists amongst others of two STMicroelectronics TL074C quad JFET operational amplifiers and a Harris/Intersil CA3046 monolithic NPN transistor array
dbx 1066 - Front View * …

dbx 1066 - Circuit Boards * …

dbx 1066 - Circuit Boards * …
Next slide

dbx 1066 - Circuitry - Image by Nikolaus Riehm - Equipment courtesy of Patrick Raddatz
dbx 1066 - Circuitry * Same parts as the comp-section (two TL074 and a CA3046)

dbx 1066 - I/O Stages * TL074 (JFET-input), NE5532 and MC33078 operational amplifiers. Optional output transformer (by-passed with the two 0Ω resistors).

dbx 1066 - LEDs * …

dbx 1066 - Circuitry * "dbx V2" and "dbx RMS1" ASICs

dbx 1066 - Metering * The metering circuitry consists of three KA339 (=LM339) quad voltage comparators
