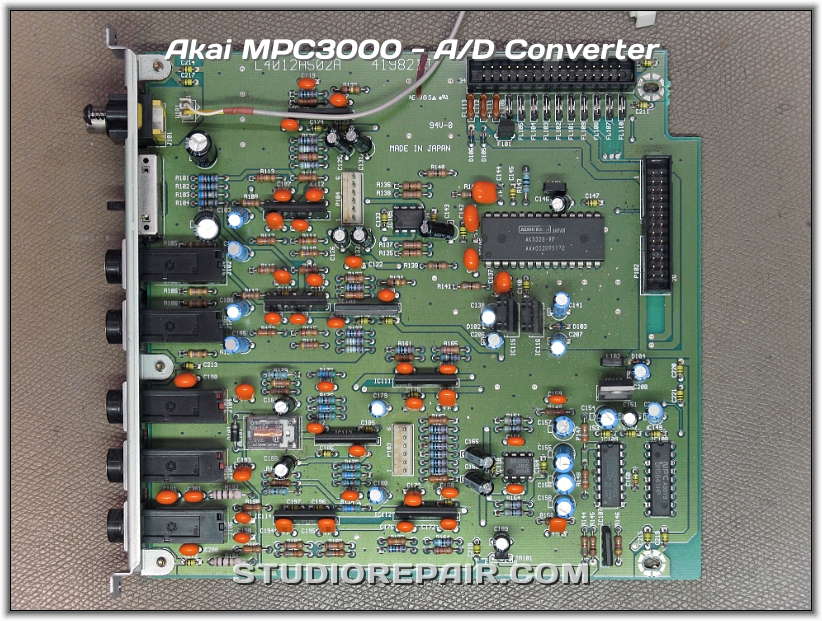

Akai MPC3000  •  A/D Converter
AD/DA PCB L401253M - AKM AK5328 18-Bit ADC - Burr-Brown PCM69A 18-Bit DAC & SM5841 Digital Filter for Stereo Output
Akai MPC3000 - Panel Board * Operation PCB L4012A506A

Akai MPC3000 - Portable * The Brand New Portable Version of the MPC3000 !!!

Akai MPC3000 - Drum Pads * The Drum Trigger Pads Assembly

Akai MPC3000 - Drum Pads * Drum Pad PCB L4012B507A

Akai MPC3000 - Wave Memory * The Optional EXM3008 8MB Wave Memory Circuit Board (PCB L5110B5010)

Akai MPC3000 - Wave Memory * The Optional EXM3008 8MB Wave Memory Circuit Board (PCB L5110B5010)

Akai MPC3000 - SCSI Board * The SCSI & Digital Audio Input Circuit Board (PCB L4012B509B)
Next slide

Akai MPC3000 - A/D Converter - Image by Nikolaus Riehm
Akai MPC3000 - A/D Converter Board * AD/DA PCB L401253M - Soldering Side

Akai MPC3000 - D/A Converter * 8DACS PCB L401251M - 8 D/A Channels (4× Burr-Brown PCM69A 18-Bit DAC & SM5841 8× Oversampling Digital Filter)

Akai MPC3000 - D/A Converter Board * 8DACS PCB L401251M - Soldering Side

Akai MPC3000 - Operation Panel Board * …

Akai MPC3000 - Operation Panel Board * Operation PCB L4012A506A - The Panel is Controlled by a Dedicated NEC µPD78C10A 8-Bit MCU w/ Integrated 8× A/D Converters

Akai MPC3000 - System Board * CPU System Circuit Board (PCB L4012A5010)

Akai MPC3000 - Digital Signal Processor * CPU System Circuit Board (PCB L4012A5010) - L7A1045 L6028 DSP-A
