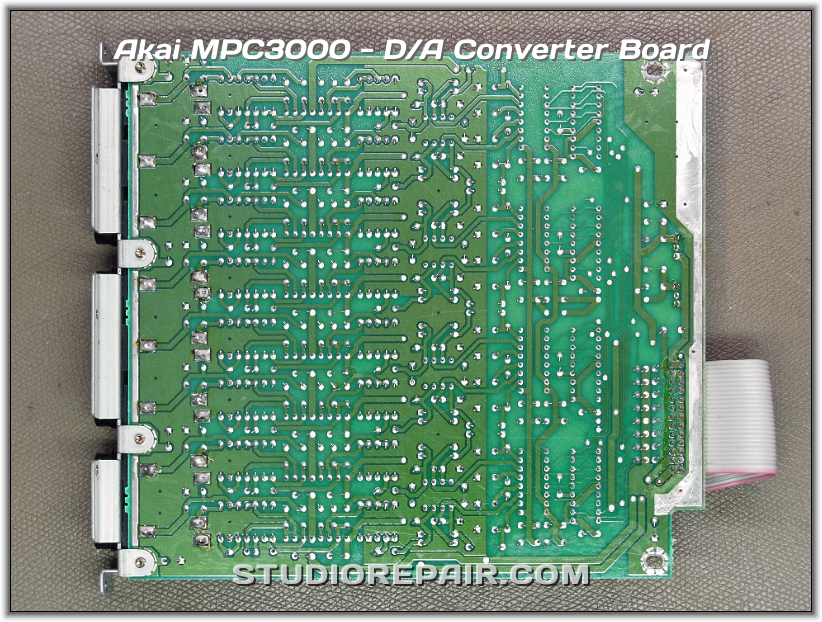

Akai MPC3000  •  D/A Converter Board
8DACS PCB L401251M - Soldering Side
Akai MPC3000 - Drum Pads * Drum Pad PCB L4012B507A

Akai MPC3000 - Wave Memory * The Optional EXM3008 8MB Wave Memory Circuit Board (PCB L5110B5010)

Akai MPC3000 - Wave Memory * The Optional EXM3008 8MB Wave Memory Circuit Board (PCB L5110B5010)

Akai MPC3000 - SCSI Board * The SCSI & Digital Audio Input Circuit Board (PCB L4012B509B)

Akai MPC3000 - A/D Converter * AD/DA PCB L401253M - AKM AK5328 18-Bit ADC - Burr-Brown PCM69A 18-Bit DAC & SM5841 Digital Filter for Stereo Output

Akai MPC3000 - A/D Converter Board * AD/DA PCB L401253M - Soldering Side

Akai MPC3000 - D/A Converter * 8DACS PCB L401251M - 8 D/A Channels (4× Burr-Brown PCM69A 18-Bit DAC & SM5841 8× Oversampling Digital Filter)

Next slide

Akai MPC3000 - D/A Converter Board - Image by Nikolaus Riehm
Akai MPC3000 - Operation Panel Board * …

Akai MPC3000 - Operation Panel Board * Operation PCB L4012A506A - The Panel is Controlled by a Dedicated NEC µPD78C10A 8-Bit MCU w/ Integrated 8× A/D Converters

Akai MPC3000 - System Board * CPU System Circuit Board (PCB L4012A5010)

Akai MPC3000 - Digital Signal Processor * CPU System Circuit Board (PCB L4012A5010) - L7A1045 L6028 DSP-A

Akai MPC3000 - System Board * CPU System Circuit Board (PCB L4012A5010)

Akai MPC3000 - System Board * CPU System Circuit Board (PCB L4012A5010) - TE7774A Quadruple USART

Akai MPC3000 - System Board * CPU System Circuit Board (PCB L4012A5010) - NEC µPD72069GF Floppy Disk Controller
