STUDIO REPAIR - Edirol R-44 - Converter

Picture Content Information
▪ Device:		Edirol R-44
▪ Topic:		Converter

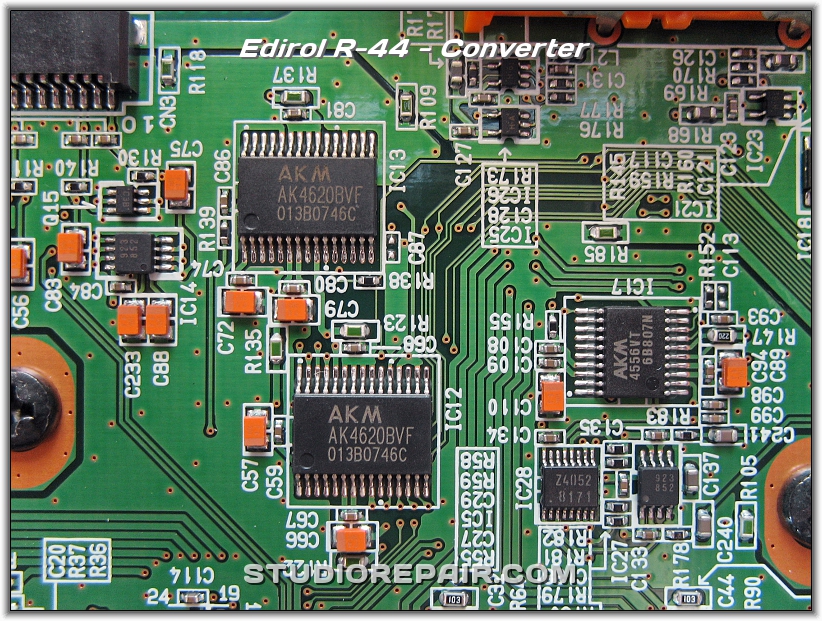

▪ Abstract:		AKM AK4620B (24-Bit/192kHz CODEC) & AK4556 (3V 192kHz/24Bit ΔΣ CODEC)
▪ Creator:		Image by Nikolaus Riehm
▪ Website:		studiorepair.com
▪ Editor:		Nikolaus Riehm
