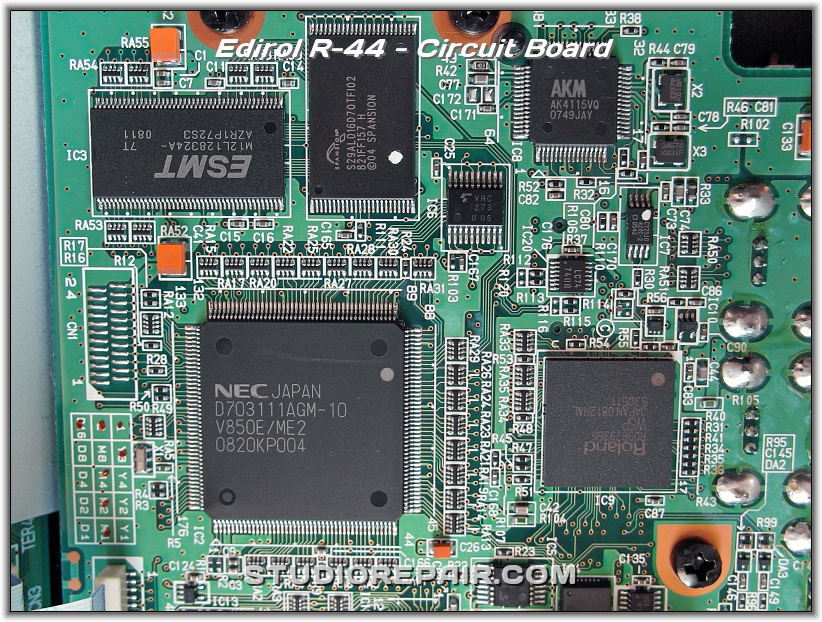

Edirol R-44  •  Circuit Board
AKM AK4115 192kHz/24bit Digital Transceiver (AES/SPDIF), NEC μPD703111AGM V850-Familiy 32-Bit RISC Microntroller
Edirol R-44 - Screws * …

Edirol R-44 - Opened * …

Edirol R-44 - Opened * …

Edirol R-44 - Opened * …

Edirol R-44 - Converter * AKM AK4620B (24-Bit/192kHz CODEC) & AK4556 (3V 192kHz/24Bit ΔΣ CODEC)

You have reached the last slide

Edirol R-44 - Circuit Board - Image by Nikolaus Riehm
