Eventide H3000 SE  •  Nonvolatile RAM

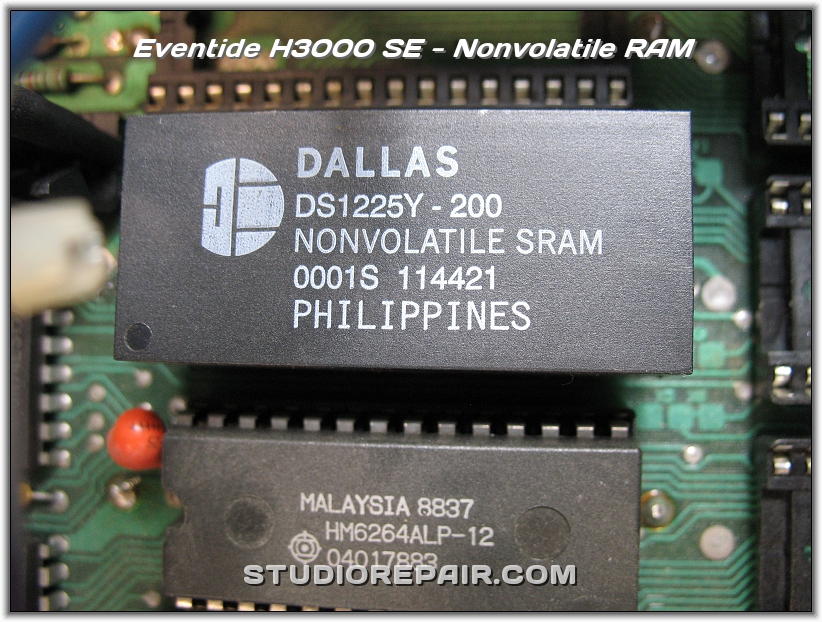

Dallas DS1225Y-200 Nonvolatile SRAM
Eventide H3000 SE - Front Panel * …

Eventide H3000 SE - Keypad * …

Eventide H3000 SE - Converters * …

Eventide H3000 SE - Digital Circuitry * …

Eventide H3000 SE - Signal Processors * All three PELs (Processing ELements) of the H3000 design.

Eventide H3000 SE - Signal Processor * Texas Instruments TMS32010 digital signal processor with its corresponding local RAM.

Eventide H3000 SE - Algorithm ROM * RAM, OS and algorithm EPROMs
Next slide

Eventide H3000 SE - Nonvolatile RAM - Image by Nikolaus Riehm - Equipment courtesy of satis&fy
Eventide H3000 SE - D/A Converter * PCM53 D/A converters

Eventide H3000 SE - Output Filter * …

Eventide H3000 SE - Output Control * …

Eventide H3000 SE - Power Supply * Electrolytics of the power supply are placed on mainboard's sodlering side
