Eventide H3000 SE  •  Keypad
…
Eventide H3000 SE - Opened * Top cover and front panel removed

Eventide H3000 SE - Front Panel * Front panel assembly

Eventide H3000 SE - Front Panel * Front panel assembly

Eventide H3000 SE - Front Panel * …

Eventide H3000 SE - Front Panel * Front panel button spring contact

Eventide H3000 SE - Button Refurbishment * …

Eventide H3000 SE - Front Panel * …
Next slide

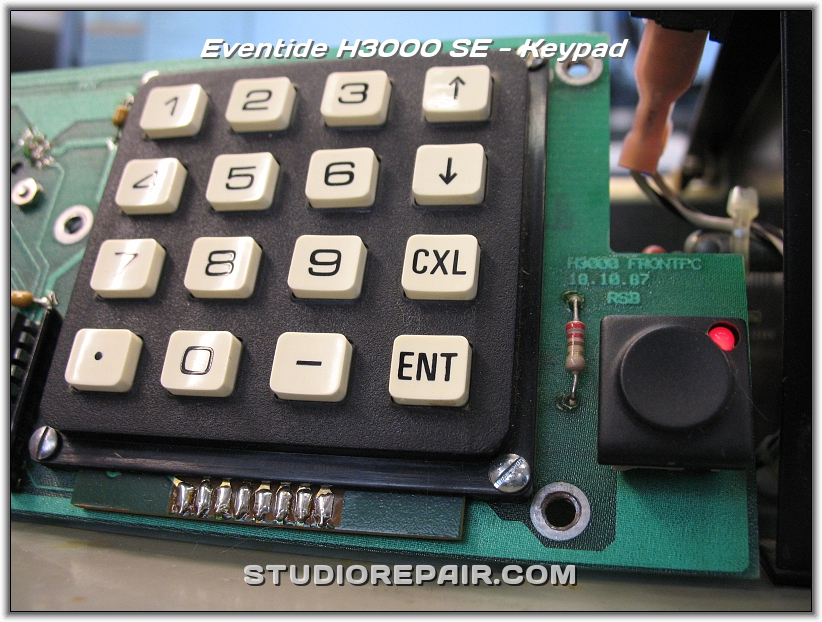

Eventide H3000 SE - Keypad - Image by Nikolaus Riehm - Equipment courtesy of satis&fy
Eventide H3000 SE - Converters * …

Eventide H3000 SE - Digital Circuitry * …

Eventide H3000 SE - Signal Processors * All three PELs (Processing ELements) of the H3000 design.

Eventide H3000 SE - Signal Processor * Texas Instruments TMS32010 digital signal processor with its corresponding local RAM.

Eventide H3000 SE - Algorithm ROM * RAM, OS and algorithm EPROMs

Eventide H3000 SE - Nonvolatile RAM * Dallas DS1225Y-200 Nonvolatile SRAM

Eventide H3000 SE - D/A Converter * PCM53 D/A converters
