Eventide H3000 SE  •  Button Refurbishment
Eventide H3000 SE - Opened * …

Eventide H3000 SE - Opened * Bottom panel removed

Eventide H3000 SE - Opened * Top cover and front panel removed

Eventide H3000 SE - Front Panel * Front panel assembly

Eventide H3000 SE - Front Panel * Front panel assembly

Eventide H3000 SE - Front Panel * …

Eventide H3000 SE - Front Panel * Front panel button spring contact

Next slide

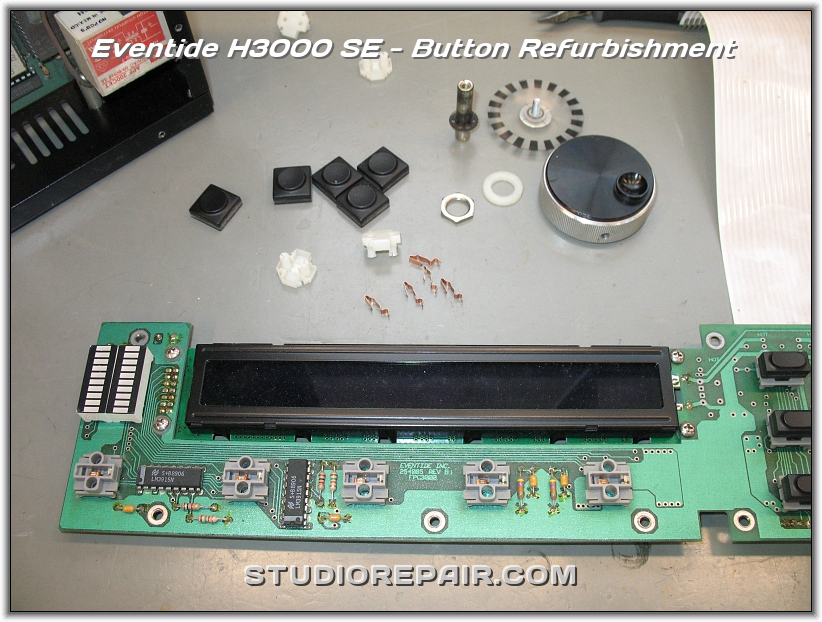

Eventide H3000 SE - Button Refurbishment - Image by Nikolaus Riehm - Equipment courtesy of satis&fy
Eventide H3000 SE - Front Panel * …

Eventide H3000 SE - Keypad * …

Eventide H3000 SE - Converters * …

Eventide H3000 SE - Digital Circuitry * …

Eventide H3000 SE - Signal Processors * All three PELs (Processing ELements) of the H3000 design.

Eventide H3000 SE - Signal Processor * Texas Instruments TMS32010 digital signal processor with its corresponding local RAM.

Eventide H3000 SE - Algorithm ROM * RAM, OS and algorithm EPROMs
