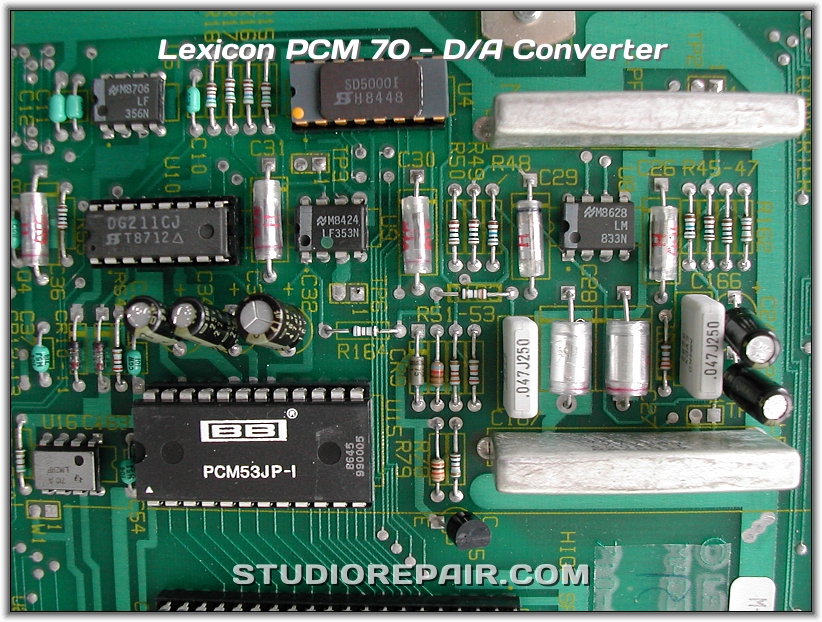

Lexicon PCM 70  •  D/A Converter
Burr Brown PCM53
Lexicon PCM 70 - Topology * …

Lexicon PCM 70 - Topology * …

Lexicon PCM 70 - LexiChips * The two LexiChips inside the PCM 70 - this is the place where Lexicon's algorithms are forged into silicon…

Lexicon PCM 70 - Memory * Memory management unit with 128 kilobytes of dynamic RAM (organized in 64k x 16bit).

Lexicon PCM 70 - Master CPU * Z80 CPU, 6402 UART, RAM

Lexicon PCM 70 - Slave Processor * Z80 CPU accompanied by 16kB static RAM

Lexicon PCM 70 - A/D Converter * …

Next slide

Lexicon PCM 70 - D/A Converter - Image by Nikolaus Riehm
Lexicon PCM 70 - Analog Circuitry * …

Lexicon PCM 70 - dbx2150 VCAs * Audio output is controlled by two VCAs steered by a separate DAC.

Lexicon PCM 70 - Power Supply * On-board power supply unit

Lexicon PCM 70 - Power Supply * The switched-mode part of the PSU generates the +5V rail for the common digital circuits. The C122 thyristor isn't part of the regulator but a crowbar device safeguarding the +5V power rail against overvoltages. And watch the neat grinding line straight through the ground plane…
