STUDIO REPAIR - Lexicon PCM 70 - Memory

Picture Content Information
▪ Device:		Lexicon PCM 70
▪ Topic:		Memory
▪ Abstract:		Memory management unit with 128 kilobytes of dynamic RAM (organized in 64k x 16bit).
▪ Owner:		Equipment courtesy of Karl Bartos
▪ Creator:		Image by Nikolaus Riehm
▪ Website:		studiorepair.com
▪ Editor:		Nikolaus Riehm

STUDIO REPAIR » Lexicon » PCM 70 - Multi Effects » Memory

[Image 10 of 18] :: Jump To

First slide

Previous slide

Show/Hide EXIF Info

Index Page

Start/Stop the slide show

Next slide

Last slide

Lexicon PCM 70 • Memory

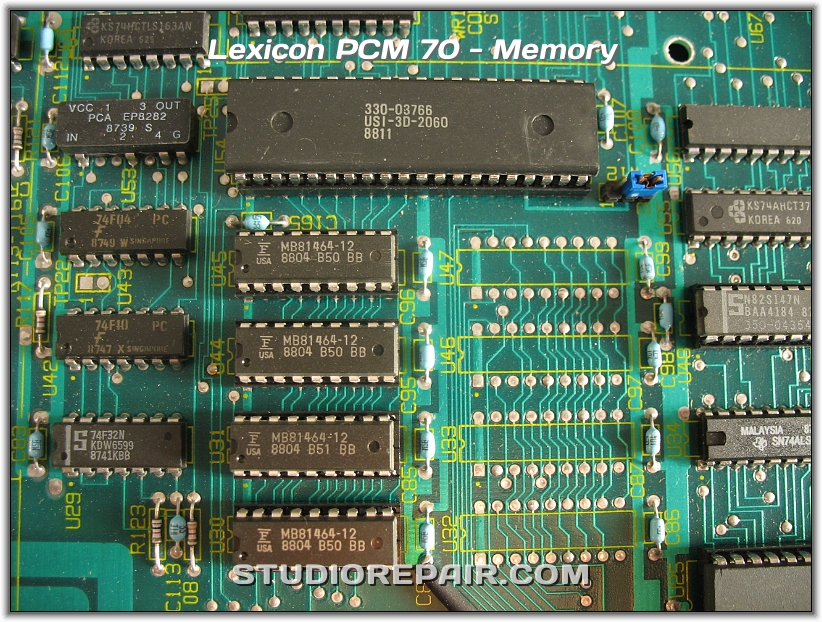

Memory management unit with 128 kilobytes of dynamic RAM (organized in 64k x 16bit).

Lexicon PCM 70 - Romantic * A quite romantic view of the PCM 70 main board…

Lexicon PCM 70 - Mainboard * Component side of the large PCM 70 mainboard. It consists of two Z80 CPUs accompanied by three specialized Lexicon high speed processors - they do the number crunching for the audio process algorithms.

Lexicon PCM 70 - Mainboard * Solder side of the PCM 70 main printed circuit board.

Lexicon PCM 70 - Display Reverse * A vacuum fluorescent display (VFD)

Lexicon PCM 70 - Topology * …

Lexicon PCM 70 - Topology * …

Lexicon PCM 70 - LexiChips * The two LexiChips inside the PCM 70 - this is the place where Lexicon's algorithms are forged into silicon…
