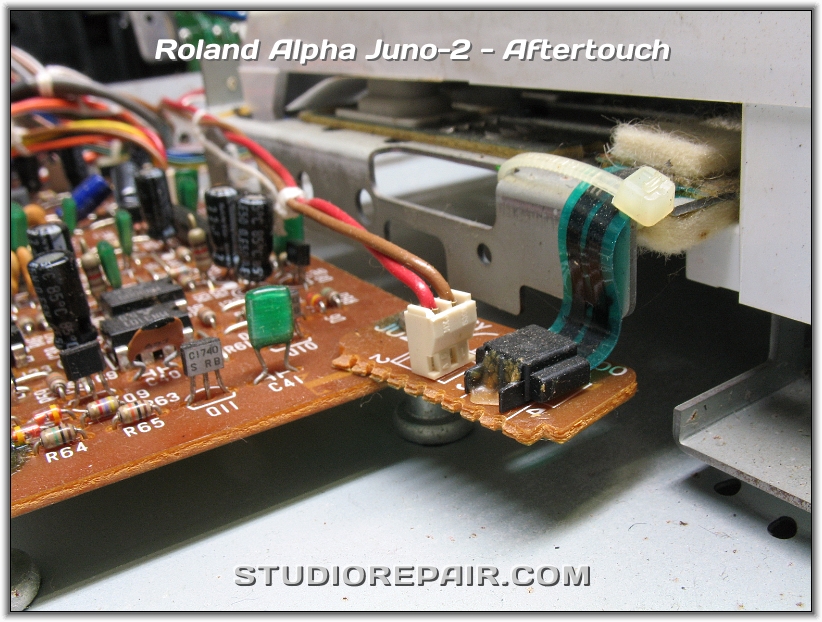

Roland Alpha Juno-2  •  Aftertouch
Pressure Strip Connector
Roland Alpha Juno-2 - A/D Converter * NEC μPD7001 8-bit A/D Converter with Serial I/O

Roland Alpha Juno-2 - Circuitry * Capacitor Array of the 4051-based S&H Circuitry. Roland's 7302 S&H-ASIC Contains Integrated Capacitors.

Roland Alpha Juno-2 - IR3R05 * Typical Point of Failure: The Integrated VCF/VCA (Roland's IR3R05)

Roland Alpha Juno-2 - Trimmer * VCF Frequency Adjustment Trim-Pots

Roland Alpha Juno-2 - Battery * Desoldered Backup Battery

Roland Alpha Juno-2 - Battery * Replaced Backup Battery with Socket

Roland Alpha Juno-2 - Chorus Board * …

Next slide

Roland Alpha Juno-2 - Aftertouch - Image by Nikolaus Riehm
Roland Alpha Juno-2 - Slider * Volume Board Assembly 76160400

Roland Alpha Juno-2 - Encoder * The α-Dial Encoder

Roland Alpha Juno-2 - Encoder * The α-Dial Encoder Dismounted

Roland Alpha Juno-2 - Encoder * The α-Dial Encoder Contact Board

Roland Alpha Juno-2 - Slider * Dismounted Volume Slider

Roland Alpha Juno-2 - Test Mode * LCD Indicating the Entered Test Mode

Roland Alpha Juno-2 - Power Supply * Mains Inlet and Transformer
