Roland Alpha Juno-2  •  Trimmer

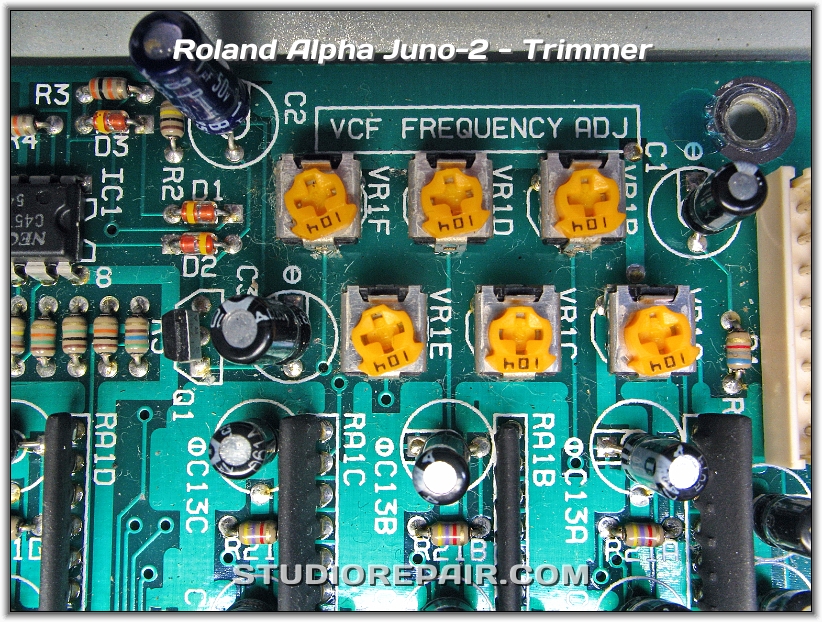

VCF Frequency Adjustment Trim-Pots
Roland Alpha Juno-2 - Logotype * Main Board Logotype

Roland Alpha Juno-2 - DCO * Roland 87123 Integrated DCO Circuitry

Roland Alpha Juno-2 - Circuitry * Voice's VCF/VCA Circuitry

Roland Alpha Juno-2 - D/A Converter * The Large Resistor Array RA2 in Conjunction with a NEC μPC4082 (IC9) JFET-Input Operational Amplifier forms the D/A Converter for all the Control Voltages

Roland Alpha Juno-2 - A/D Converter * NEC μPD7001 8-bit A/D Converter with Serial I/O

Roland Alpha Juno-2 - Circuitry * Capacitor Array of the 4051-based S&H Circuitry. Roland's 7302 S&H-ASIC Contains Integrated Capacitors.

Roland Alpha Juno-2 - IR3R05 * Typical Point of Failure: The Integrated VCF/VCA (Roland's IR3R05)
