NED Synclavier II  •  PSU Assembly
NED Synclavier II - Welcome ! * Welcome to Synclavier II with 16 Voices and 512 kilobytes of finest RAM! Release M anno 1987

NED Synclavier II - Logotyope * Logotype on the main frame's front panel

NED Synclavier II - Main Frame * …

NED Synclavier II - Main Frame * …

NED Synclavier II - Mains Inlet * …

NED Synclavier II - Main Frame * This is Synclavier - two 19 open frames filled with removable printed circuit boards. The whole system is build complete 'discrete digital' without large-scaled integrated circuits like a CPU or specialized I/O devices. The function of a so called central processing unit is spread over several boards. Impressive!

NED Synclavier II - Fans Removed * Rear fan panel removed

Next slide

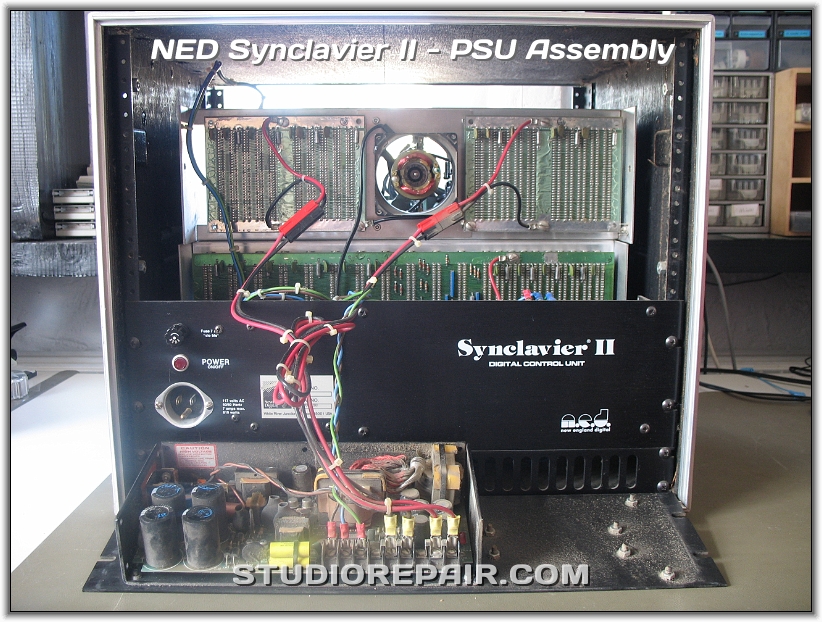

NED Synclavier II - PSU Assembly - Image by Nikolaus Riehm
NED Synclavier II - Power Distribution * …

NED Synclavier II - Back Planes * Back plane PCBs of the main frame

NED Synclavier II - Bus Plane * …

NED Synclavier II - Power Supply * …

NED Synclavier II - PSU Type * One of two switched-mode power supply units. This one delivers up to 35A (!) DC at 5V

NED Synclavier II - Keyboard Opened * …

NED Synclavier II - Keyboard Opened * …
