Roland Juno-60  •  Right Panel PCB

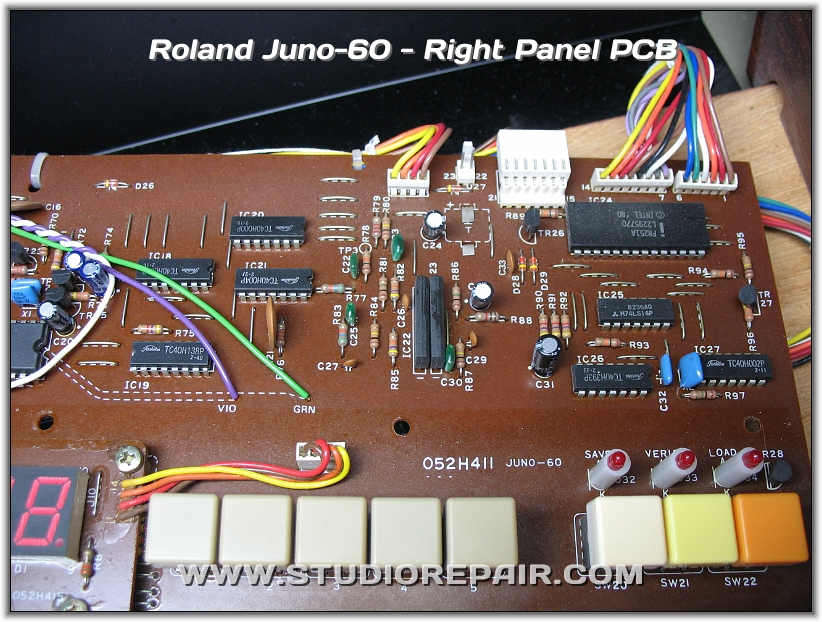

The right hand panel PCB contains the Intel 8251 USART for the DCB connection
Roland Juno-60 - VCA Section * Board OPH161 / PCB 052H370C - Voltage Controlled Amplifiers - One Roland BA662 OTA per Voice

Roland Juno-60 - Envelope Generators * CPU Board OPH161 / PCB 052H370C - Envelope Generator Section w/ one Roland IR3R01 per Voice

Roland Juno-60 - CPU / Voice Board * Board OPH161 / PCB 052H370C - Waveform & VCF Section (Roland IR3109 Quadruple OTA for VCF Applications)

Roland Juno-60 - Right Panel PCB * Dismounted right panel PCB

Roland Juno-60 - Panel Board * Panel Board A OPH187 / PCB 052H410C

Roland Juno-60 - Panel Board * Panel Board A OPH187 / PCB 052H410C

Roland Juno-60 - Panel Board * Panel Board A OPH187 / PCB 052H410C

Next slide

Roland Juno-60 - Right Panel PCB - Image by Nikolaus Riehm - Equipment courtesy of Marek Hemmann
Roland Juno-60 - Picture * The right hand panel PCB contains the masked-programmed 80C49 panel controller. It scans all pots, sliders, buttons and stores the patches into memory and handles the cassette tape writing and reading.

Roland Juno-60 - Memory * IC11 and IC12 is the battery backed-up patch memory. 1k x 4 bit per chip = 1 kilo byte

Roland Juno-60 - Opened * Left Hand Controller Section Dismounted

Roland Juno-60 - Bending Unit PCB * …

Roland Juno-60 - Chorus PCB * Left side view with up-lifted bender unit to unsheathe the chorus PCB

Roland Juno-60 - Chorus PCB * Chorus circuitry consists of one MN3009 256-stage BBD per channel, driven by a MN3101 clock generator and modulated by a separate chorus LFO on the right panel PCB.

Roland Juno-60 - Chorus PCB * A dusty chorus PCB
