Roland Juno-60  •  Bending Unit PCB
Roland Juno-60 - Opened * Case opened - view onto the main board and mainly the right one of the two panel boards. The yellow cylinder on the right is the CR-1/3-N lithium backup battery soldered onto the PCB.

Roland Juno-60 - Opened * …

Roland Juno-60 - Opened * Opened case - left side view

Roland Juno-60 - Opened * Opened case - right side view

Roland Juno-60 - Circuit Boards * In this view you can see all the PCBs: both panel boards, the main board, the power supply, the bending unit and the chorus PCB.

Roland Juno-60 - Main Board * …

Roland Juno-60 - Opened * Left Hand Controller Section Dismounted

Next slide

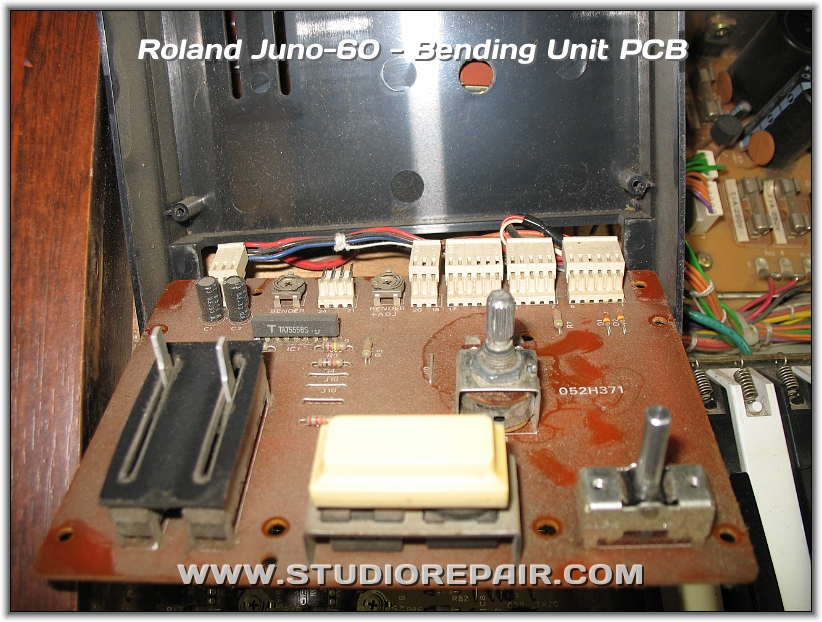

Roland Juno-60 - Bending Unit PCB - Image by Nikolaus Riehm - Equipment courtesy of Marek Hemmann
Roland Juno-60 - Chorus PCB * Left side view with up-lifted bender unit to unsheathe the chorus PCB

Roland Juno-60 - Chorus PCB * Chorus circuitry consists of one MN3009 256-stage BBD per channel, driven by a MN3101 clock generator and modulated by a separate chorus LFO on the right panel PCB.

Roland Juno-60 - Chorus PCB * A dusty chorus PCB

Roland Juno-60 - Chorus PCB * Chorus circuitry consists of one MN3009 256-stage BBD per channel, driven by a MN3101 clock generator and modulated by a separate chorus LFO on the right panel PCB.

Roland Juno-60 - Right Panel PCB * Dismounted right panel PCB

Roland Juno-60 - Right Panel PCB * The right hand panel PCB contains the Intel 8251 USART for the DCB connection

Roland Juno-60 - Picture * The right hand panel PCB contains the masked-programmed 80C49 panel controller. It scans all pots, sliders, buttons and stores the patches into memory and handles the cassette tape writing and reading.
